SHD3300-950/2500 Easy Operation And Maintenance Hydraulic Dyno

Name: SHD33009502500 Easy Operation And Maintenance Hydraulic Dyno
Brand: SEELONG
Price: 1 USD

Brand Name : SEELONG

Model Number : SHD3300-950/2500

Certification : CMC

Place of Origin : China Luoyang

MOQ : 1

Price : Confidential

Payment Terms : T/T

Supply Ability : 5 sets per month

Delivery Time : 8-12weeks

Packaging Details : 1200mmX2000mmX1800mm wooden box per set

Rated power : 3300Kw

Torque Measurment accurancy : ±0.4％

Maximum breaking torque : 33400Nm

Contact Now

SHD3300-950/2500 Easy Operation And Maintenance Hydraulic Dyno

Product structure

SHD hydraulic dynamometer is mainly composed of body parts, force measuring mechanism parts, inlet and drain parts, calibration parts, electric drain valve parts, automatic regulating device parts and lubrication parts.

SHD3300-950/2500 Easy Operation And Maintenance Hydraulic Dyno

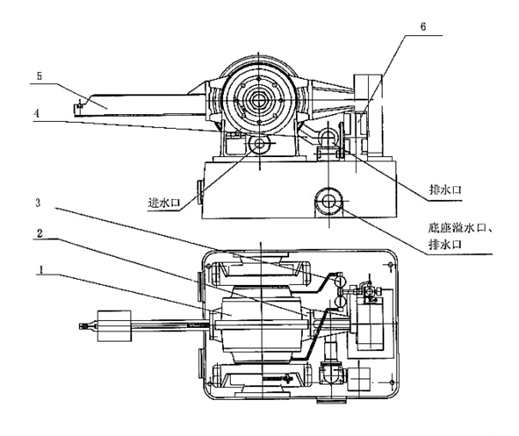

SHD880-S,SHD1900-S,SHD3300-S Outline diagram of hydraulic dynamometer

1,body 2,dyno 3,lubrication parts 4,inlet and drain parts 5,calibration parts 6,electric drain valve parts

product selection

Mode Order No.	Rated Power (kw)	Torque Measurement accuracy(F.S)	Rate accuracy(F.S)	Maximum breaking torque(NM)	Maximum drainage temperature(℃)	Length and taper of spindle cone
SHD60-3500/9000	60	±0.4％	±0.1％	172	70	63,1:30
SHD120-2000/7500	120	±0.4％	±0.1％	525	70	70,1:30
SHD250-2500/7500	250	±0.4％	±0.1％	980	70	70,1:30
SHD380-3000/5000	380	±0.4％	±0.1％	1240	70	70,1:30
SHD520-2000/5000	520	±0.4％	±0.1％	2450	70	70,1:30
SHD660-2000/3500	660	±0.4％	±0.1％	3150	70	80,1:30
SHD880-1500/3000	880	±0.4％	±0.1％	5700	70	100,1:30
SHD1200-1000/3000	1200	±0.4％	±0.1％	11760	70	192,1:30
SHD1900-1100/3000	1900	±0.4％	±0.1％	17200	70	192,1:30
SHD2500-900/2500	2500	±0.4％	±0.1％	26460	70	170,1:30
SHD3300-950/2500	3300	±0.4％	±0.1％	33400	70	170,1:30
